A door system designed around you.

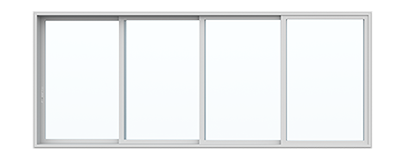

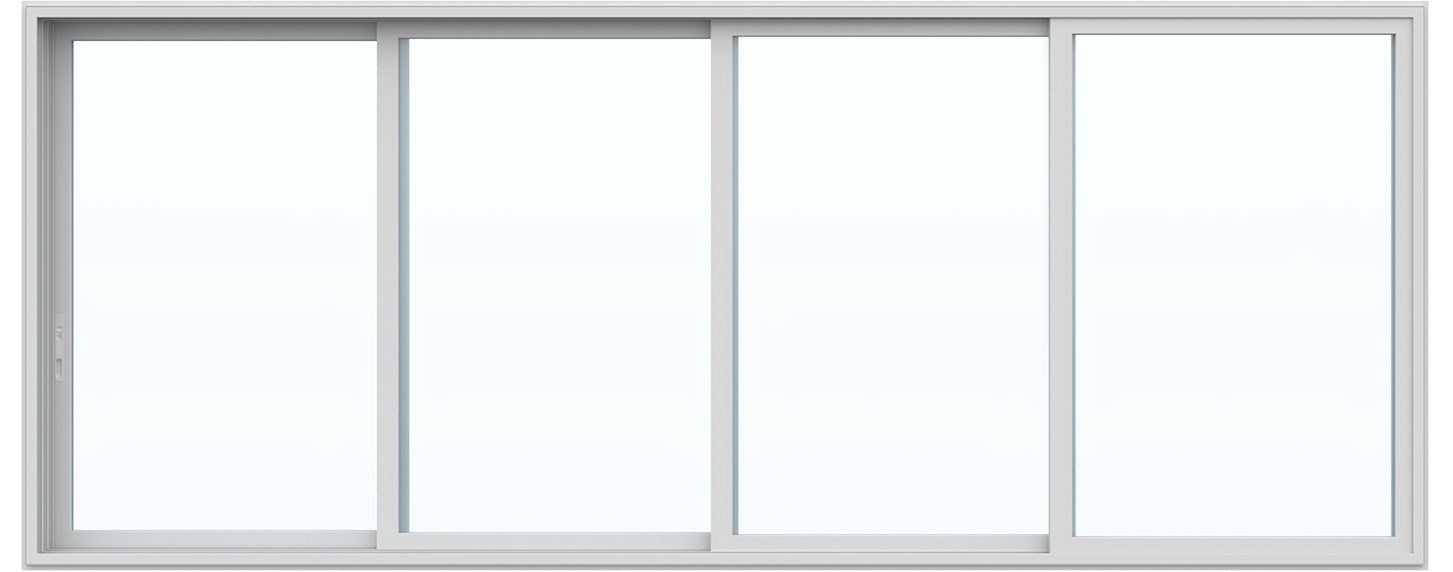

Cascade Vinyl Multi-Slide Door

Cascades multi-slide door compliments its patio door and window series offerings with an energy-efficent solution to your home. This door comes in a variety of sizes to accommodates any room size. Well-engineered and attractively designed, our vinyl multi-slide door exude excellence in form as well as function. You'll enjoy years of perfectly smooth operation and benefit from the energy-saving features that go into each door system. This design features an enhanced roller system and panel collectors for easy of operation.

Vinyl Colors

White
White

Almond
Almond

Hardware Options

White

White handle

Almond

White handle

Oil Rubbed Bronze

White handle

Configurations Options

3 Panel

9' x 8' 2 panel

4 Panel

10' x 8' 3 panel

5 Panel

12' x 8' 4 panel

Cascade U-Value

U-values measure the rate that heat transfers through a product. Therefore the lower u-value, the lower the heat loss and the better your home is insulated. Be sure to check the u-values on any window that you might be considering. Our specially coated EC and EC+ windows re ect outside heat in the summer and interior heat in the winter, reducing your air conditioning and heating requirements.

U-Value Sample Range

U-Value

The Advantage of Cascade Windows Glass Coatings

EC = Dual Coat internal Low-E, high performance internal Low-E with more visual light transmittance.

EC+ = Triple Coat internal Low-E, has been specially formulated to reject the sun's heat without affecting the view. It lets in more light and helps keep the heat out.

EC/EC Advanced = Dual Low-E, high performance internal Low-E combined with 4th surface Low-E.

EC+/ EC Advanced = Dual Low-E, Triple Coat internal Low-E with 4th surface Low-E, the best overall combination for low solar heat gain and the maximum reduction in u-value.

Dual Pane Glass

Heat Flow Illustration

EC logo EC+ Low-E Glass

The Warm Edge Spacer reduces condensation, reduces heat loss/gain through the glass, and greatly increases the integrity of the insulated glass unit's seal.

Super Spacer Options

Cascade Ultra spacer system offers the same esthetics as our standard intercept spacer although with better u-value performance rivaling that of a foam spacer system.

Cascade Multi-Slide Door Specs

Min panel width: 30 inches.
Max panel width: 60 inches.
Max system width: 20 feet.
Max system height: 6'8" or 8 feet.
With quadrollers 9' & 10' revel

Material: Extruded vinyl with steel re-enforcement.
Outer frame types: 1-3/8″ or 7/8 nail fin set-back.
Sash construction: Four corner welded sash.
Glass options: Triple coat low-e, EC=+Ec2
Both available with Argon.

Grid Options:

Standard 13/16" wide grid with perimeter & valance. Additional glass and grid styles are available.
